All Machine Overview
Manual Hydraulic Die Cutting Machine
- Operation by the hands
- The machine is with working pallet
- It fits for cutting wide and multi layers material
- Pressure board moves up and down by the guide of slideway
- There fixed bearing lubrication between spindle and shaft block, so need not adding oil.
Automatic Slide Rail Die Cutting Machine
- Independent PLC operation panel, simple operation, easy to use and high work efficiency
- Equipped with automatic oil supply lubrication system
- When the pressing plate touches the die, it will sense the slow cutting to avoid any error in the raw material.
- Pneumatic clamping die device makes die replacement more convenient
- The machine is equipped with a single or double-sided automatic feeding system, which is 3-4 times more efficient than ordinary manual machines.
Hydraulic Swing Arm Cutting Machine
- The swing arm rotates freely, making material selection easy. The swing arm's height can be adjusted using a handwheel on the top of the machine.
- Two-handed operation is often used to ensure operator safety and prevent accidents that could occur due to one-handed operation.
- The cutting process is relatively smooth, offering greater flexibility and less material damage than mechanically driven cutting machines
- The unique hydraulic system design ensures exceptionally low noise levels during operation, while also keeping the oil temperature low.

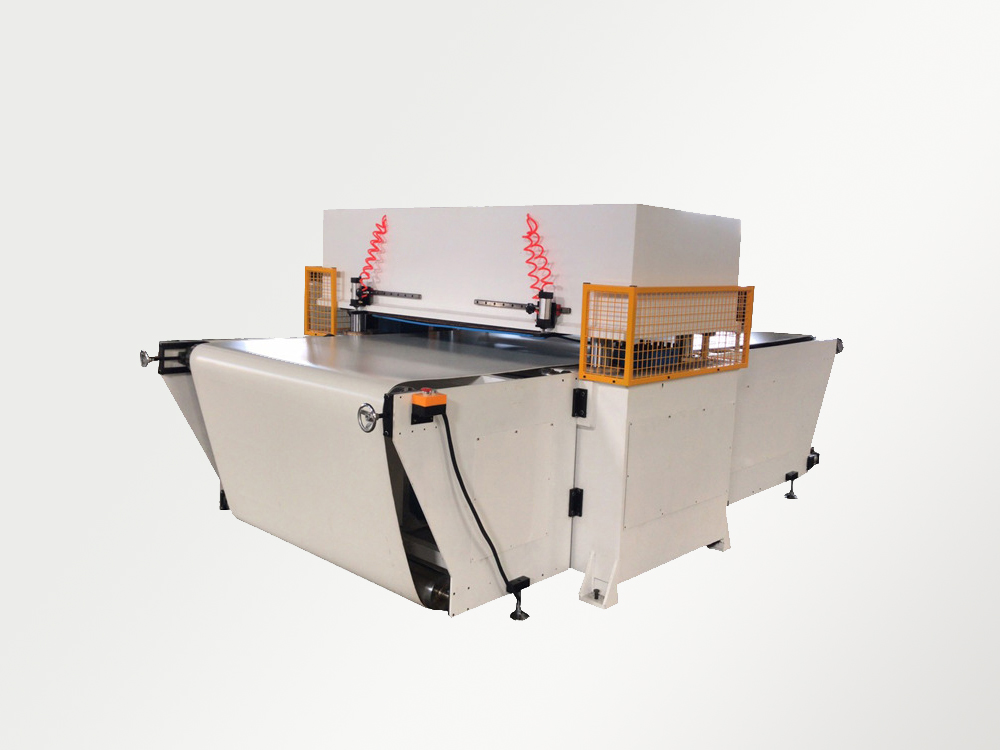

Automatic Belt Die Cutting Machine
- Equipped with a continuous loop conveyor belt, driven by a servo motor to accurately feed the material, with a feeding accuracy of ±0.1-0.5mm
- The pressure is transmitted smoothly and evenly on the die, avoiding burrs caused by uneven pressure.
- Touch screen PLC control system, can set "feeding length, cutting pressure, cutting speed, cycle times" and other parameters
- The device has its own fault diagnosis function, and the fault code is displayed on the touch screen
- The scraps produced by cutting can be automatically transported to the garbage area along the belt for easy cleaning
Automatic Traveling Head Die Cutting Machine
- Travel head frame structure is adopted, with high intensity and without deformation.
- The cutting head can automatically move horizontally, with excellent operating visual field and safe operation.
- Stroke can be adjusted, makes stroke simple and correct to adjust with cutting die, cutting board and materials.
- The cutting head movement accuracy can reach ±0.1mm, and it supports preset cutting paths to avoid manual positioning errors.
- The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.

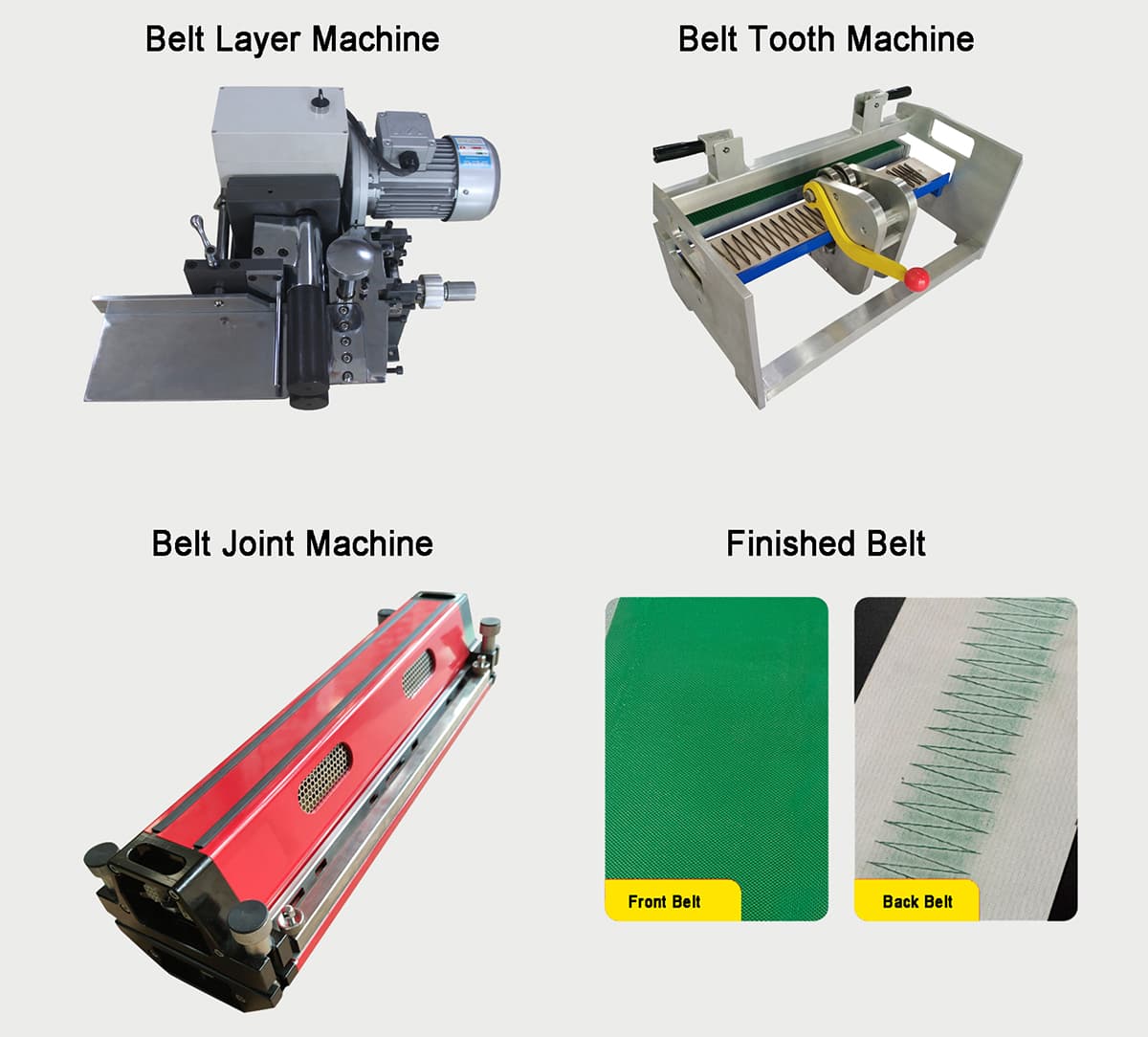

PU Belt Processing Machine
- Industrial belt connections require sequential layering, tooth machining, and precise bonding to ensure the joints are free from misalignment and that transmission is highly efficient.
- Select a dedicated layering machine and determine the layer thickness, which is typically half the total belt thickness, preserving the surface of the transmission area.
- Fix both ends of the belt to the toothing machine to process fully meshed teeth, ensuring that the tooth pitch and tooth height are consistent at both ends.
- Start the connector and activate the heating function according to the preset parameters, activate the pressure device to ensure that the pressure is applied evenly to the entire connector.
- remove the clamps and use a utility knife to trim any excess adhesive edges and burrs at the joint.
