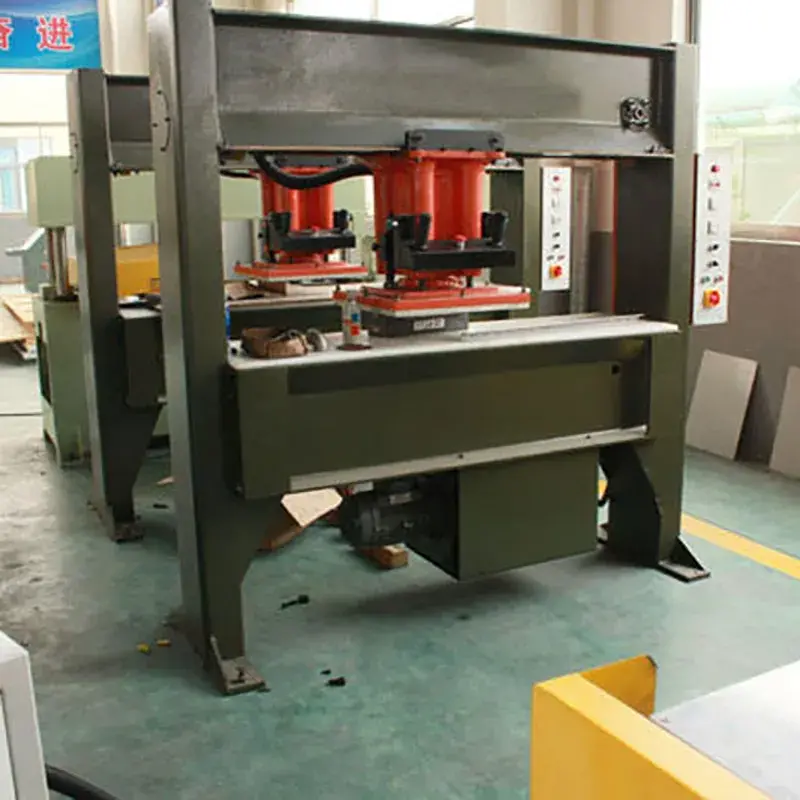

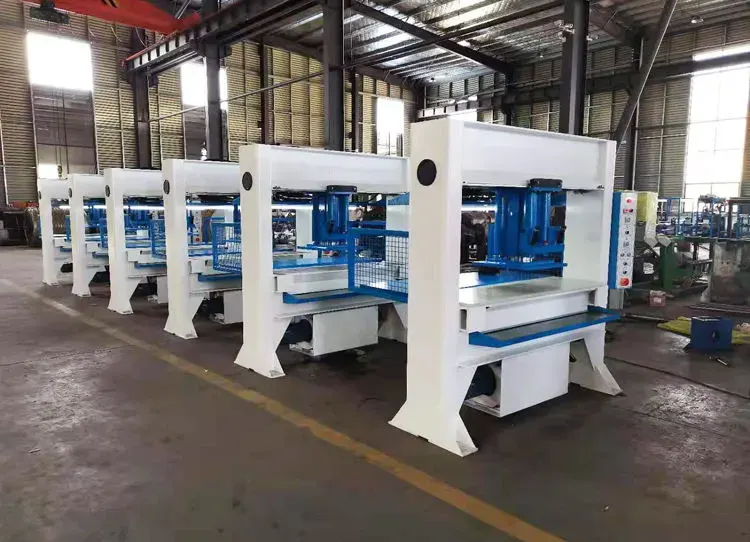

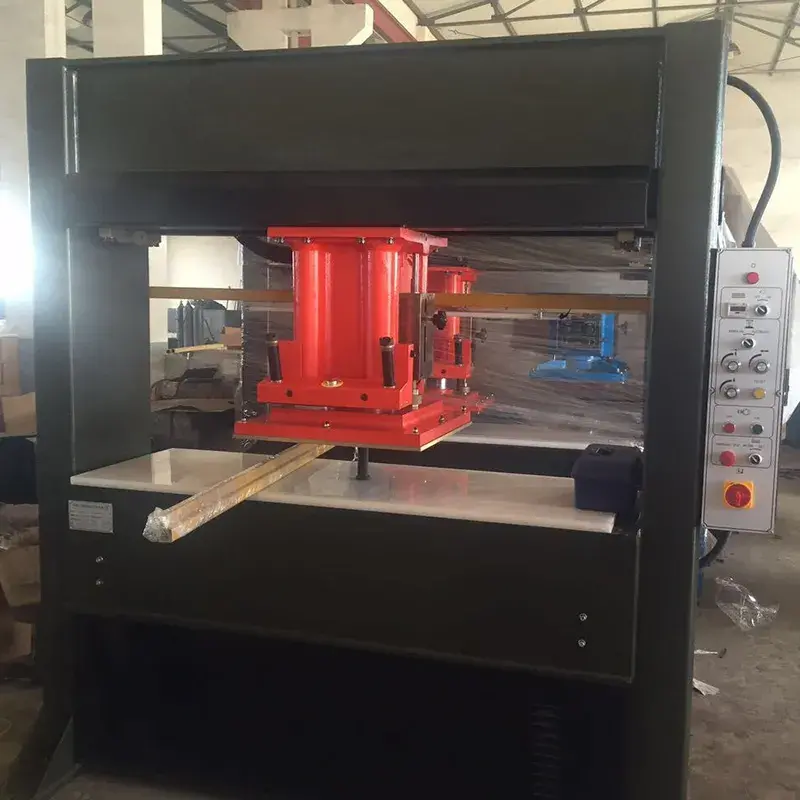

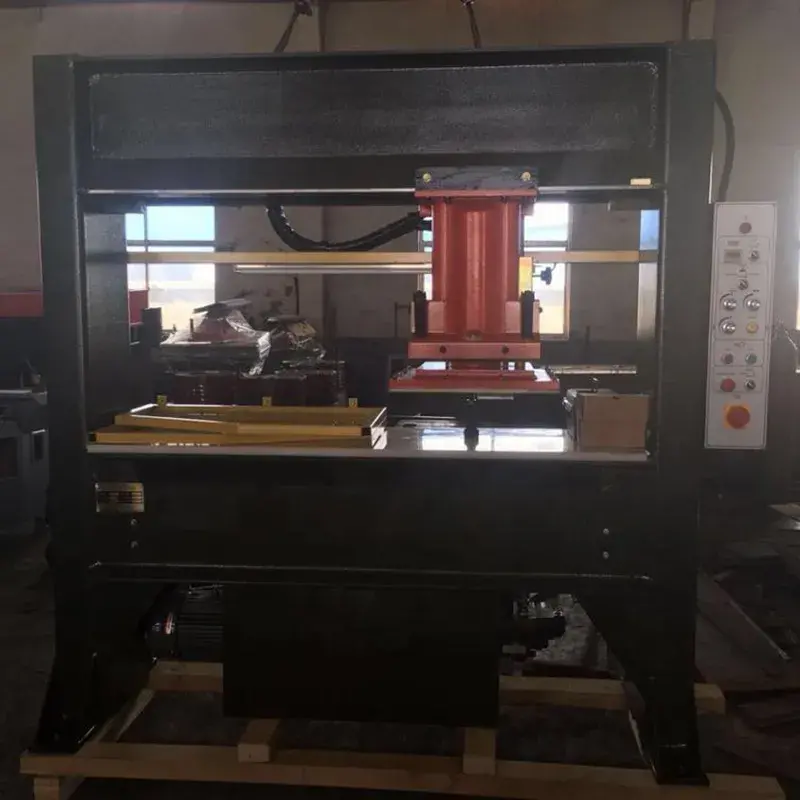

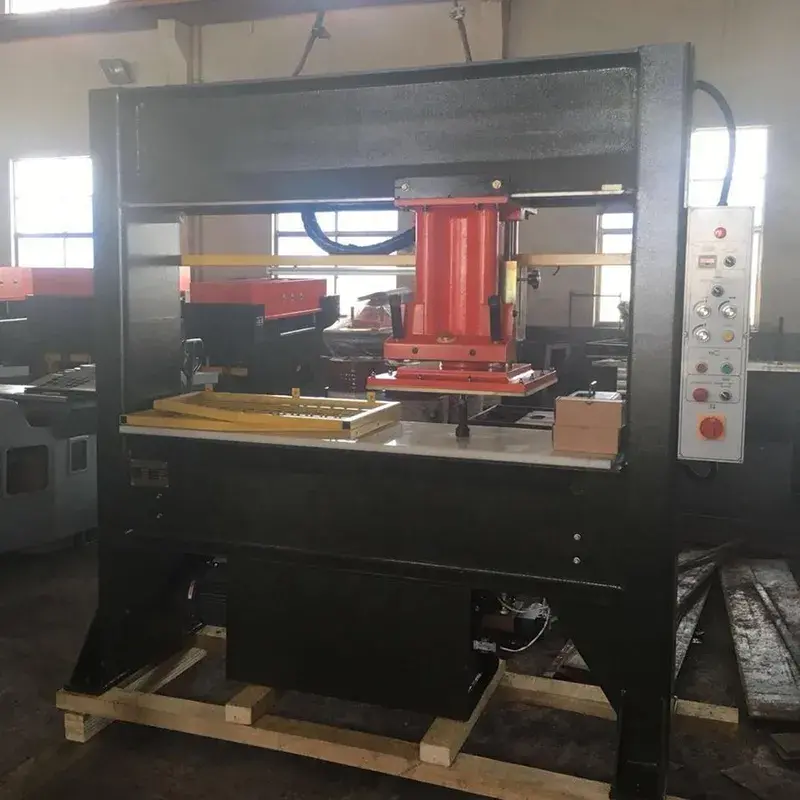

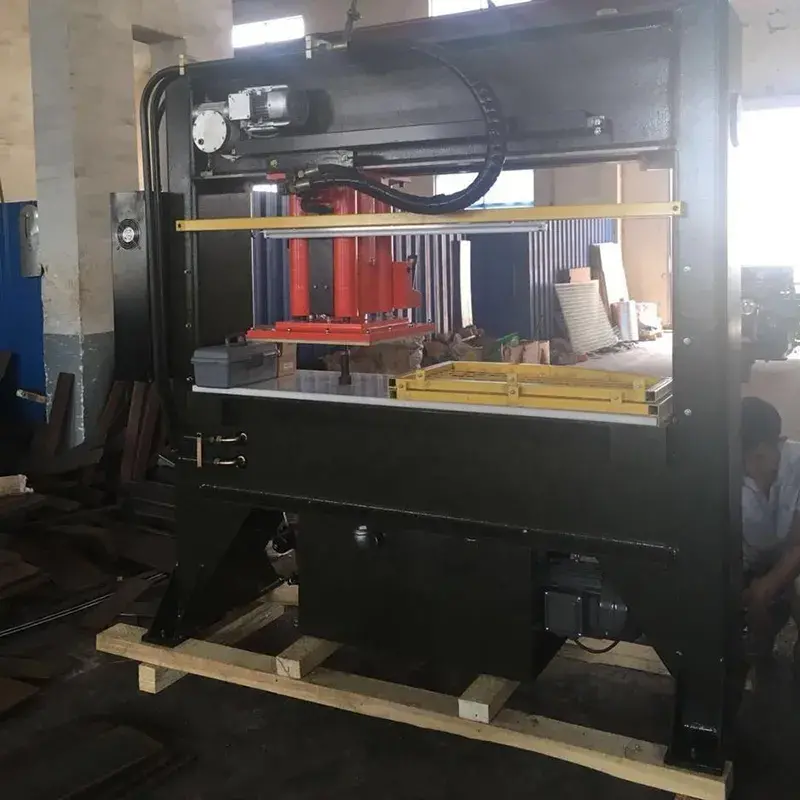

Manual travel head press cutting machine is a precision mechanical device widely utilized in industries such as leather goods manufacturing, footwear production, garment processing, packaging, and gasket fabrication. Designed for the die-cutting of flexible materials, it combines manual operational control with a movable pressure head structure to deliver accurate and efficient cutting performance.
The main structure and components of manual travel head press cutting machine
- Frame system
The machine features a heavy-duty, rigid steel frame that ensures stability during the cutting process. The robust construction minimizes vibration and deflection, which is critical for maintaining cutting precision, especially when processing thick or dense materials like genuine leather, rubber sheets, or composite fabrics. - Travel head assembly
The signature component is its movable pressure head (travel head), which is mounted on a horizontal guide rail. Operators can manually adjust the position of the head along the rail to align with different areas of the material or to accommodate various die sizes. The head is equipped with a pressure plate that securely holds the cutting die, ensuring uniform force distribution across the die’s surface. - Manual operation mechanism
Unlike hydraulic or pneumatic press cutters, manual travel head press cutting machine relies on manual force transmission typically via a lever or handwheel system. When the operator actuates the lever, a linkage mechanism converts the manual input into downward pressure, driving the cutting die through the material and onto the cutting board (a replaceable, self-healing pad made of materials like polypropylene that protects the die and ensures clean cuts). - Material Holding Table
A flat, spacious worktable sits beneath the travel head, providing ample area to lay out raw materials. Some models are equipped with adjustable clamps or positioning guides to fix the material in place, preventing slippage during cutting and ensuring consistent results for batch processing.
The technical parameters of manual travel head press cutting machine
Model | MTH-25 |
Maximum cutting force | 25 Ton |
Adjustable stroke | 10-120 mm |
Working table effective length | 1600 mm |
Press board working sizes | 500×500 mm |
Hydraulic oil | ～80kg |
Weight | 1550 kg |
Appearance sizes (lenght×width×height) | 2180×520×1970 mm |
Moter power | 2.2 kw |
Power supply | 380V/50Hz |
The manual travel head press cutting machine is user-friendly, it requires proper operator training to ensure safety and efficiency. Operators should wear protective gloves to avoid hand injuries, and regular lubrication of the guide rails and linkage parts is necessary to maintain smooth operation and extend the machine’s service life. It is also important to match the cutting die size and material thickness to the machine’s pressure capacity to prevent damage to the die or frame.
