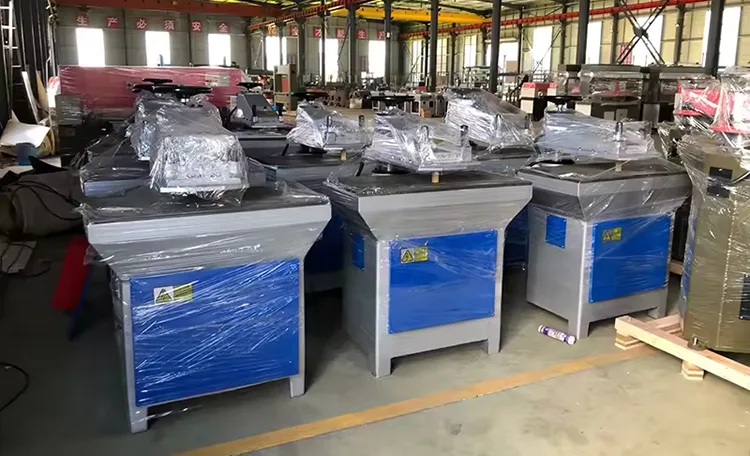

25T swing arm clicker machine delivers steady 25-ton cutting force, enabling seamless cutting of multiple material layers with neat, burr-free edges. Featuring low noise and energy-efficient operation, this machine supports extended continuous work sessions without performance degradation. Unlike smaller-tonnage clicker machines, the 25T swing arm clicker machine is capable of handling thicker materials, with adjustable pressure settings to accommodate various material types and thickness requirements.
Robust Hydraulic System & Stable Cutting Performance
At the heart of the 25t swing arm clicker machine lies a high-performance hydraulic drive system that generates stable 25-ton cutting pressure. This hydraulic clicker press ensures smooth, vibration-free operation, eliminating material shifts and guaranteeing clean, burr-free cuts every time. The system features automatic stroke-end adjustment, compatible with cutting dies of varying heights without manual recalibration, while an integrated potentiometer enables precise pressure tuning for different material thicknesses. Built with heavy-duty cast iron construction, the machine maintains exceptional beam strength, resisting deformation even under prolonged high-pressure use and extending the service life of both the unit and cutting dies.
Flexible Swing Arm Design & Operational Convenience
A defining trait of the 25t swing arm clicker machine is its 360° flexible swing arm, which swivels smoothly in and out of the cutting zone. This design simplifies die alignment, material positioning, and finished product retrieval, drastically reducing material waste and boosting workflow efficiency. The swing arm offers a wide working radius (typically 450–550mm), covering a large cutting table (up to 1000×500mm) to accommodate diverse material sizes and die shapes. Operators benefit from unobstructed visibility and easy access to the worktable, making the clicker machine ideal for intricate leather goods, footwear components, and industrial parts cutting.
Comprehensive Safety & Durability Features
Safety is prioritized in the 25t swing arm clicker machine with a dual-hand push-button control system featuring a 0.3-second delay, preventing accidental activation and ensuring operator hands remain clear during cutting. The machine includes overload protection, anti-double click, and anti-tiedown functions, complying with CE, UL 508(a), and ANSI B11 safety standards. All moving parts use hardened steel and self-lubricating components, minimizing wear and reducing maintenance needs. A fully enclosed electrical cabinet and advanced hydraulic circuit design further enhance durability, making the clicker machine suitable for continuous industrial operation.
The technical parameters of 25t swing arm clicker machine
| Model | DSADM-10 | DSADM-12 | DSADM-16 | DSADM-20 |
| Max. Cutting Force | 100 KN | 120 KN | 160 KN | 200 KN |
| Max scissoning force | 0.10 m/s | 0.098 m/s | 0.10 m/s | 0.10 m/s |
| Seissor speed | 5-75 mm | 5-60 mm | 5-75 mm | 5-75 mm |
| Stroke adjustment | 60-120 mm | 60-120 mm | 65-150 mm | 65-150mm |
| Distance between upper table and lower able | 400*800 mm | 400*900 mm | 450*900 mm | 500*1000 mm |
| Overall dimension | 850*700*1250 mm | 900*800*1300 mm | 900*900*1380 mm | 1000*900*1380 mm |
| Motor power | 0.75 KW | 1.1 KW | 1.1 KW | 1.5 KW |
Wide Industrial Applications
The 25t swing arm clicker machine excels across diverse industries, serving as a versatile workhorse for die cutting tasks. It effortlessly processes leather, textiles, rubber, foam, EVA, plastic sheets, cardboard, fiberglass, and composite materials. Key applications include:
- Footwear: Cutting shoe uppers, soles, and insoles
- Leather goods: Handbags, wallets, belts, and leather furniture components
- Automotive: Interior trims, gaskets, and rubber parts
- Packaging: Precision cutting of paper, cartons, and plastic packaging
- Textiles & Nonwovens: Fabrics, filters, and industrial textile parts
Why Choose Our 25T Swing Arm Clicker Machine?
Our 25t swing arm clicker machine balances power, precision, and practicality better than lower-tonnage models. It delivers sufficient pressure for thick or multi-layer materials while retaining the flexibility of swing arm design, avoiding the bulk of larger fixed-beam presses. Backed by a 1–2 year warranty and customizable options (NRTL certification, custom cutting tables), this clicker machine is built for long-term industrial use. Whether for small workshops or large factories, it elevates die cutting accuracy, productivity, and cost-effectiveness—making it the ultimate choice for businesses seeking a high-performance, reliable 25t swing arm clicker machine.
We also have automatic shoemaking hydraulic die cutting machine, you are still interested, you can click it.
